Our 2009 Arctic Fox 24-5N 5th Wheel
Photos from the day we found it at the dealer
Curb (left) side
Another photo of the curb side, except this is actually a 2010
sistership.
Under dinette, basement & battery compartments.
Street (left) side
Plumbing access, basement, under sofa storage, water heater
Front cap, LP & storage compartments

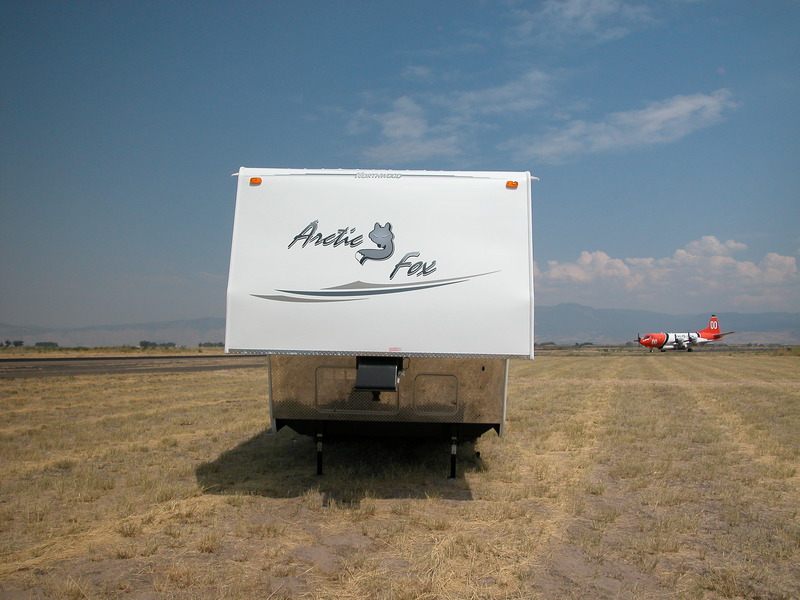

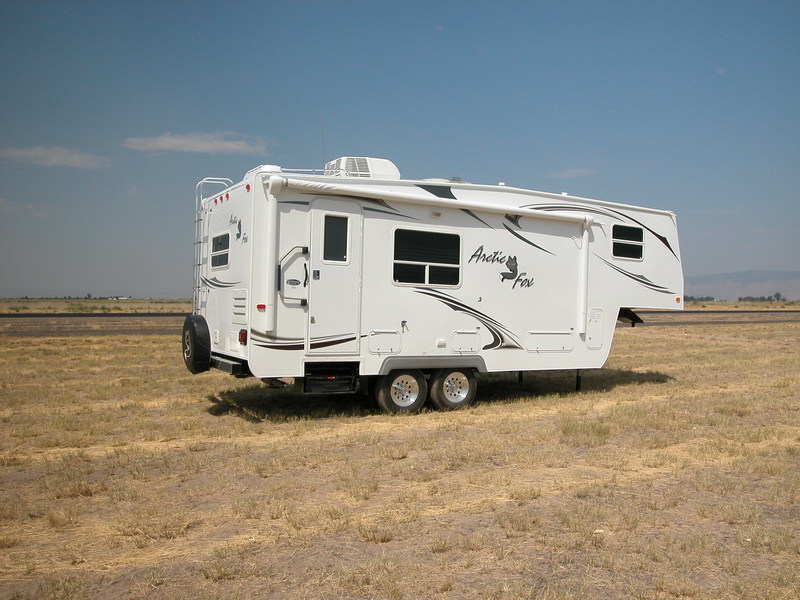

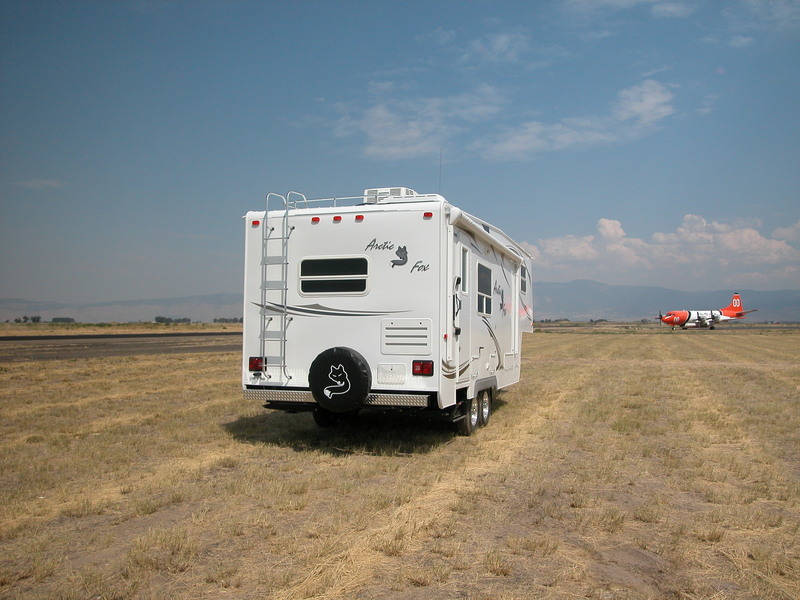

Rear View
Shorepower behind spare, refer &
outside shower
Bedroom
Galley
Dinette & Hallway
Sofa slide
These are stock shots taken by the factory

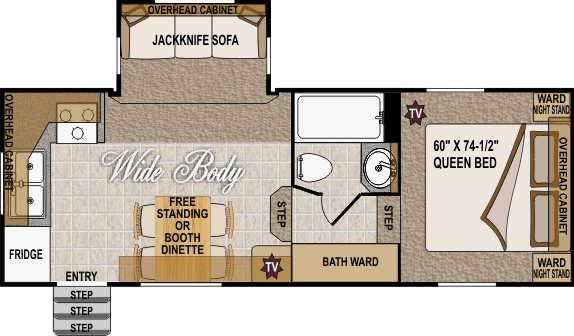

Floor plan
Curb (right) side

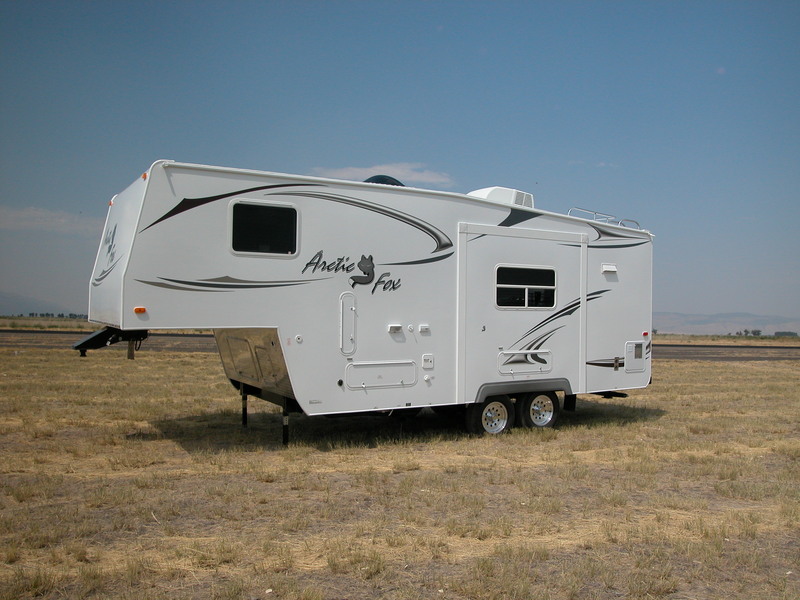

Street (left) side
Front cap
Rear view
Galley & Living Room Slide
Dinette & Galley
Hallway to Bedroom
Bedroom
Bathroom
Delivery Day
The shiny new 24-5N 5th wheel sits behind the grungy looking
29V
Arctic Fox: 24-5N 5th Wheel Specifications
- Gross Vehicle Weight (GVWR) - Lbs.:
- 10000
- Black Water Tank (approx. gallons):
- 35
- Exterior Length (approx. w / hitch):
- 26'2"
- Exterior Width (approx. w/o awning):
- 8'6"
- Load Range:
- D
- Exterior Height (approx. w/ A/C):
- 11'4"
- Net Carrying Capacity:
- 2880
- Tire Size:
- ST225/75R15
- CSA - Canadian Dealers Only:
- YES
- Fresh Water Capacity (approx. gal):
- 56
- Gray Water Tank (approx. gallons):
- 35/35
- Dry Axle Weight (approx. Lbs.):
- 5940
- Auto Ignition Furnace (1,000 BTU's):
- 35
- Dry Hitch Weight (approx. Lbs.):
- 1180
- LPG Capacity (approx. gallons):
- 14
- Gross Dry Weight - Lbs.:
- 7120
 | CONSTRUCTION:
- Hardwall-Filon:
- Standard
- Storm Windows:
- Optional
- Thermal Pane Windows:
- Optional
|
| CHASSIS, FRAME & SUSPENSION:
- 12V Power Jack:
- Standard
- 16" Tire/Wheel/Spare:
- Not Available
- Aluminum Wheels:
- Standard
- Chassis Mount Spare:
- Not Available
- Never Lube Axles/HD Suspension:
- Not Available
- Rear Mount Spare w/Cover:
- Standard
- Shock Absorbers-All Wheels:
- Standard
- Stabilizer Jacks:
- Standard
|
| PLUMBING:
- 10 Gal DSI Gas/Electric Water Heater:
- Standard
- 6 Gal DSI Gas/Electric Water Heater:
- Not Available
|
| ELECTRICAL:
- 2.5 Onan Generator LP:
- Not Available
- 3.6 Onan Generator LP:
- Not Available
- 5.5 Onan Gen. LP w/50 Amp Service:
- Not Available
- Generator Ready:
- Not Available
- TV Antenna:
- Standard
|
| HEATING & AIR CONDITIONING:
- 13.5K BTU A/C w/Ducting:
- Standard
- 13.5K BTU A/C w/out Ducting:
- Not Available
- 15.0K BTU A/C w/Ducting:
- Optional
|
| LIQUID PROPANE GAS:
- Dual 30# LPG Bottles:
- Standard
- Dual 40# LPG Bottles:
- Not Available
- Single 40# LPG Bottle:
- Not Available
|
| BATHROOM/LAVY:
- Bathroom Skylight:
- Standard
- Neo-Angular Shower:
- Not Available
- Shower Pan:
- Optional
- Shower Screen:
- Standard
- Tub/Shower:
- Standard
|
| KITCHEN/GALLEY:
- Deep-Dbl Sink & Hi Rise Faucet:
- Standard
- Double Door 6 cu. ft Fridge:
- Not Available
- Extra Large 10 cu.ft Fridge:
- Not Available
- Extra Large 8 cu. ft Fridge:
- Standard
- Kitchen Skylight:
- Standard
- Microwave:
- Standard
- Range Cover:
- Standard
- Single Lever Faucet w/Sprayer:
- Not Available
|
| INTERIOR:
- AM/FM CD Player:
- Standard
- Booth Dinette:
- Standard
- Free-Standing Dinette:
- Optional
- Hide-a-Bed:
- Not Available
- Jackknife Sofa:
- Standard
- One Swivel Rocker:
- Optional
- Two Swivel Rockers:
- Not Available
|
| EXTERIOR:
- Awning:
- Standard
- BBQ Grill:
- Optional
- Exterior Shower:
- Standard
- Roof Rack and Ladder:
- Standard
|
