Overhauling the front suspension on the W123 Mercedes-Benz; 1984 300CD

1.  Setting up the spring compressor

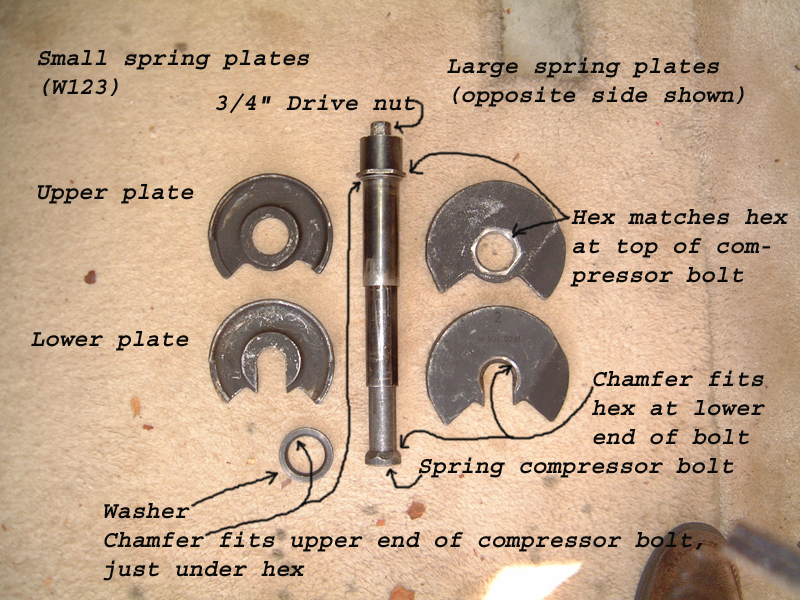

Spring compressor parts (1) Spring compressor components.jpg (374255 bytes)

All the pieces of the spring compressor

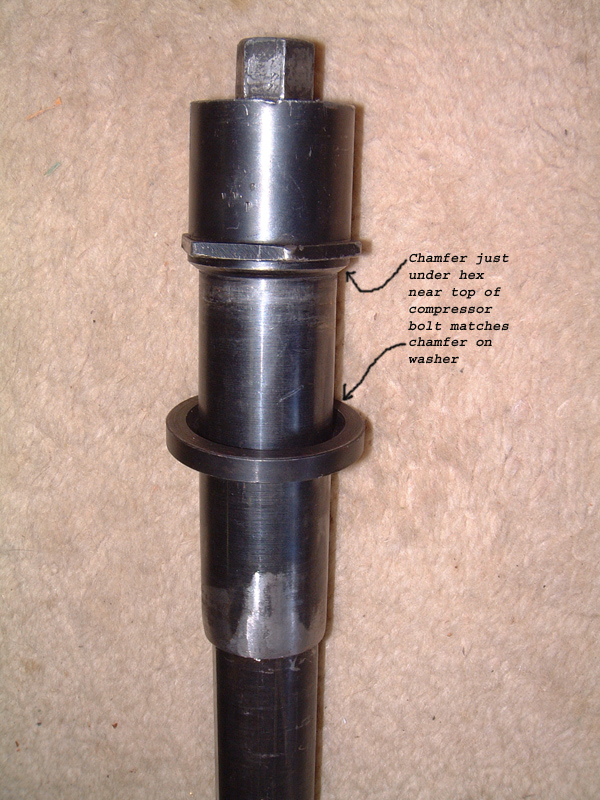

 Spring compressor components, version 1a.jpg (321310 bytes)

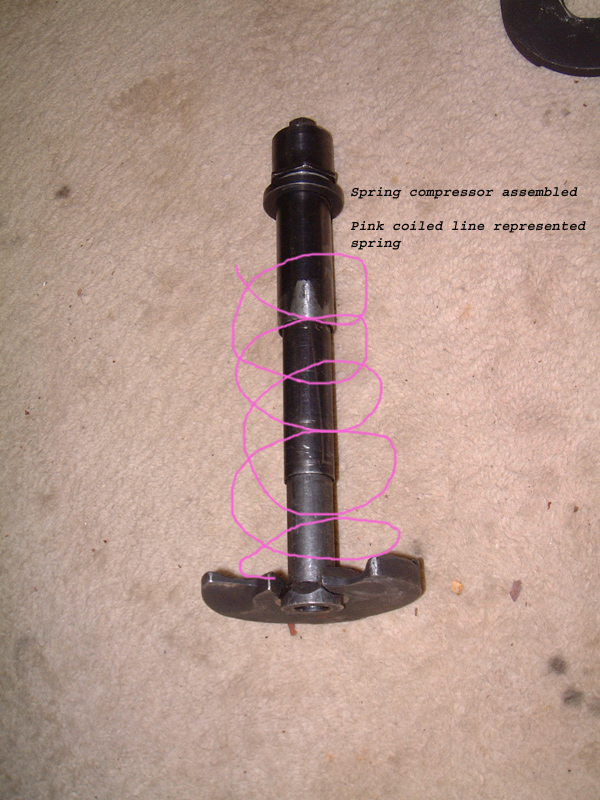

Upper end of spring compressor



Spring compressor components, version 1b.jpg (307742 bytes)

Spring compressor assembled off car

 Spring compressor components, version 1c.jpg (286946 bytes)

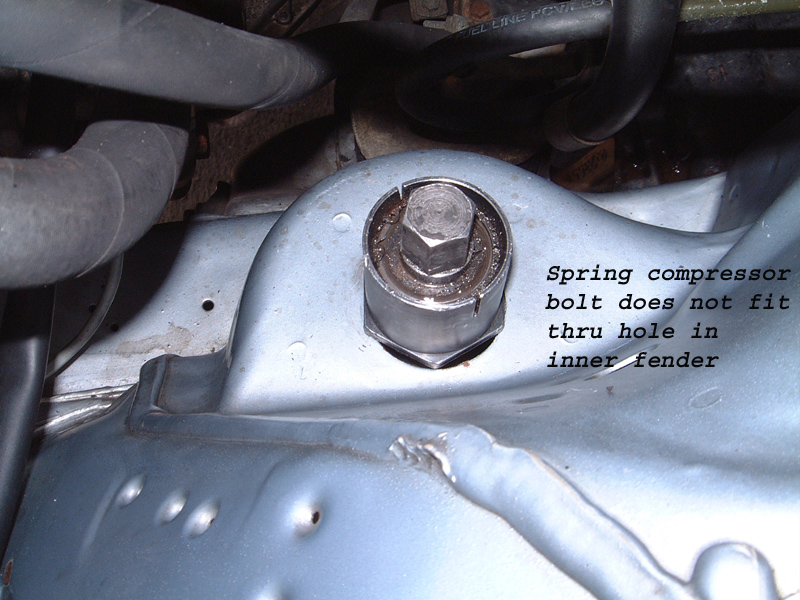

Why we can't use an upper plate on the W123 with this spring compressor

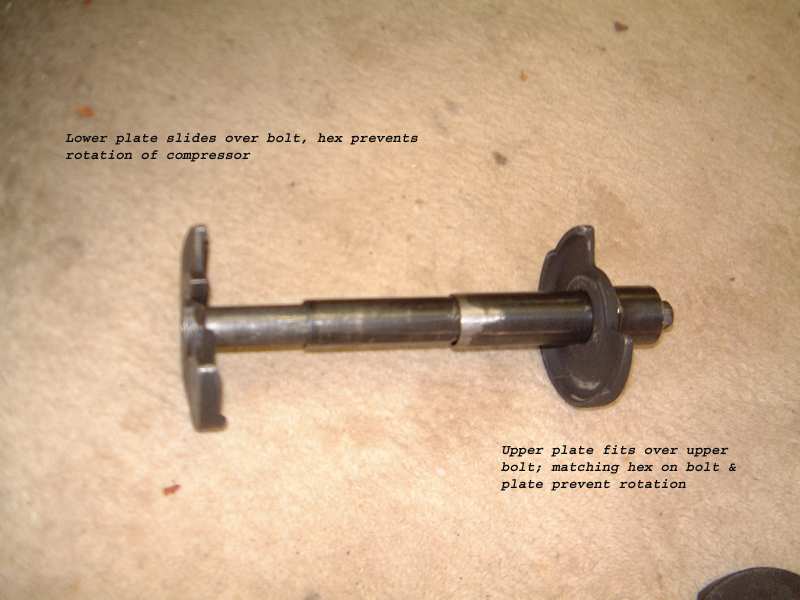

    Spring compressor assembly for cars that use both plates Spring compressor components, version 2.jpg (258518 bytes)
Assembling the spring compressor on the car: Insert compressor bolt Spring compressor components, version 1a.jpg (321310 bytes)

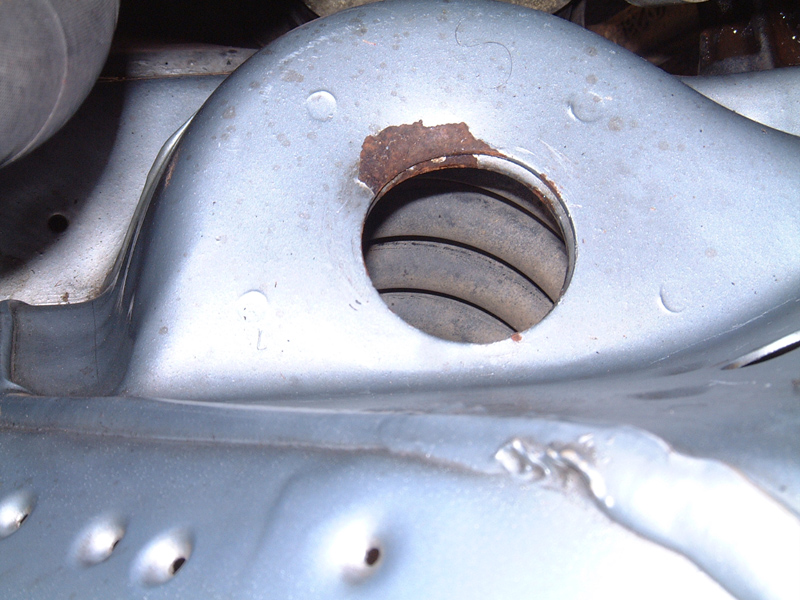

with chamfered washer intoSpring tower, inner fender.jpg (275154 bytes)

Hole in inner fender

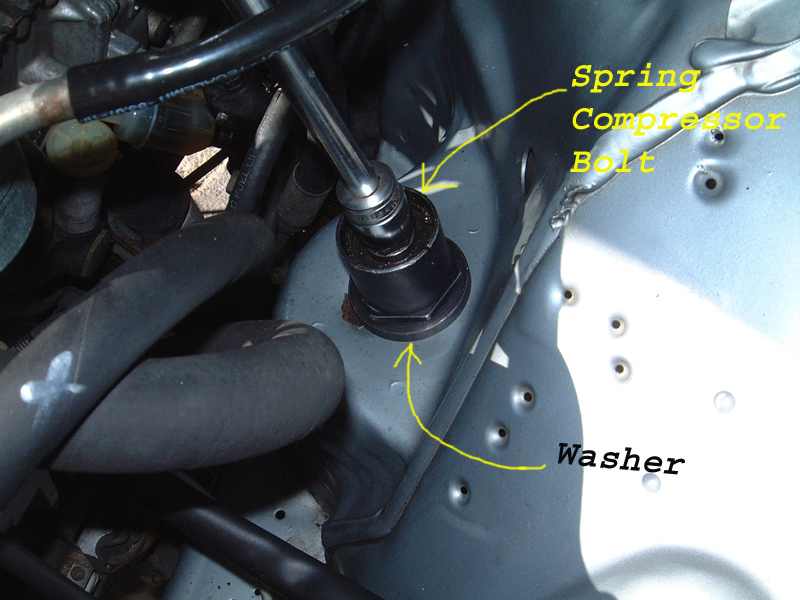

 Spring Compressor installed on inner fender.jpg (270714 bytes)

View under hood

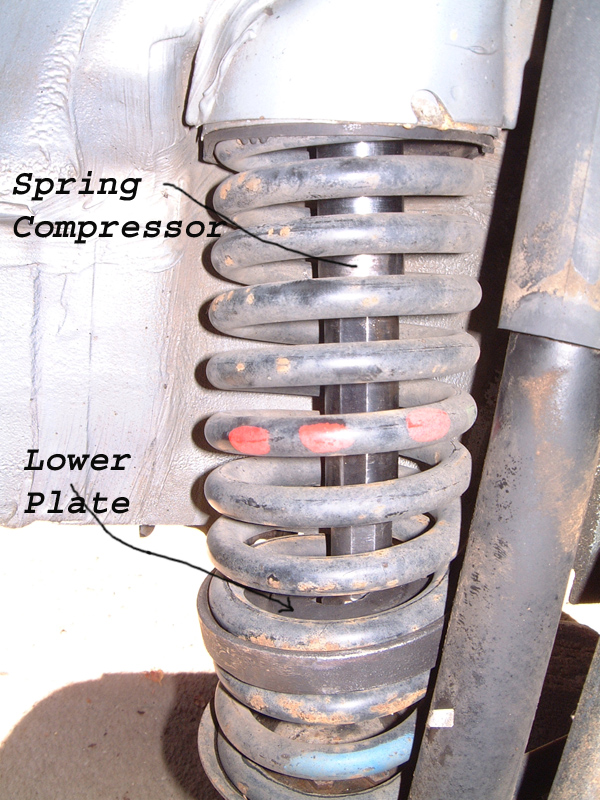

 Spring Compressor installed , lower view.jpg (321605 bytes)

View inside fender

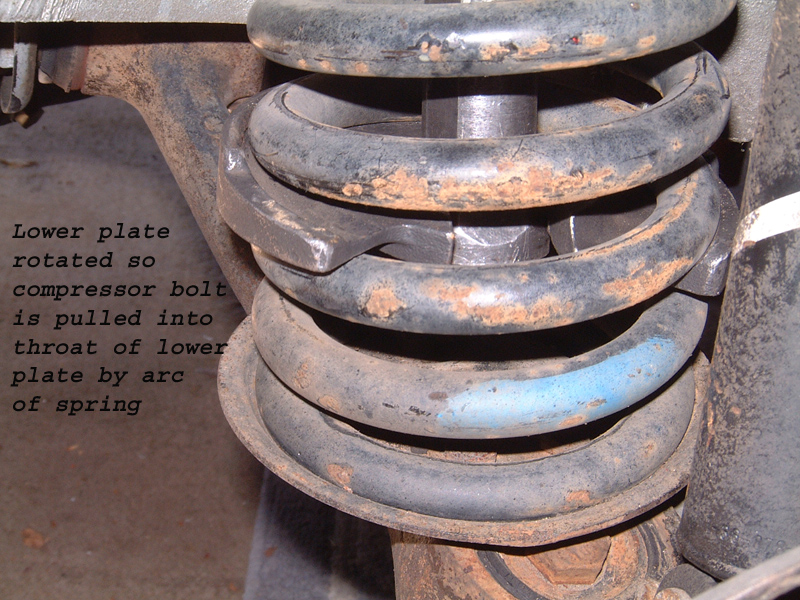

Note that lower plate needs to be rotated so that lower end of bolt doesn't slide out of plate

 Spring compressor components, version 1d.jpg (351823 bytes)

Showing plate rotated

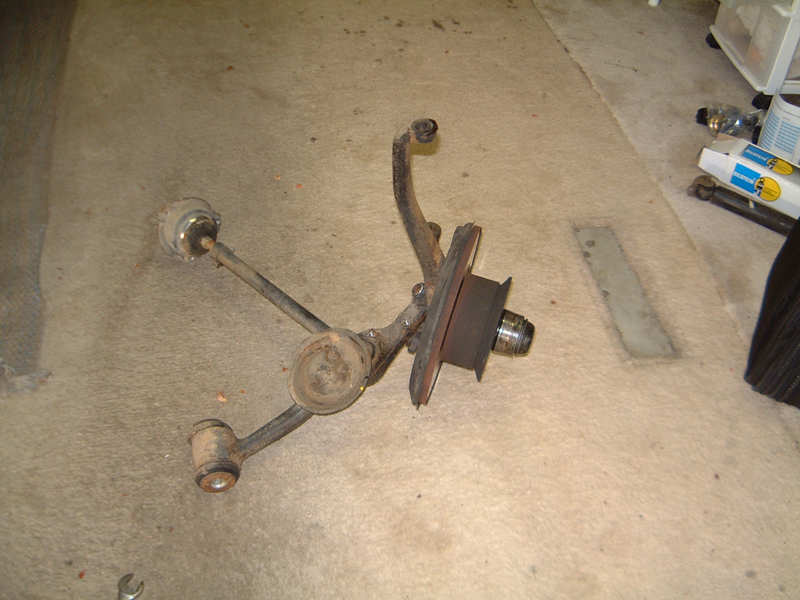

Removing the LF suspension assembly: LF suspension assy.jpg (275285 bytes)

Et voila!!

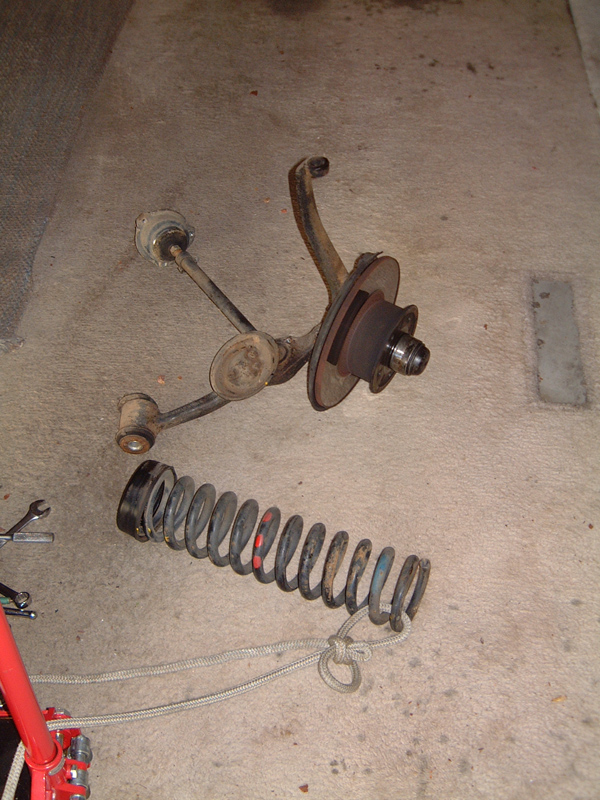

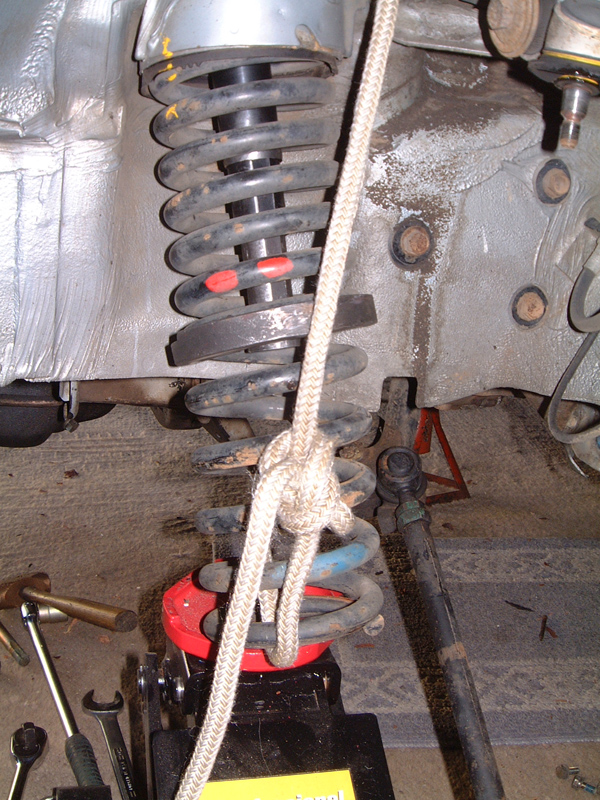

 LF Suspension assy & spring.jpg (323378 bytes)   Spring held in by nylon line.jpg (374253 bytes)
Shop Supervisors: Bo & Zeta at fence.jpg (380656 bytes)   Vang-1.jpg (92336 bytes)

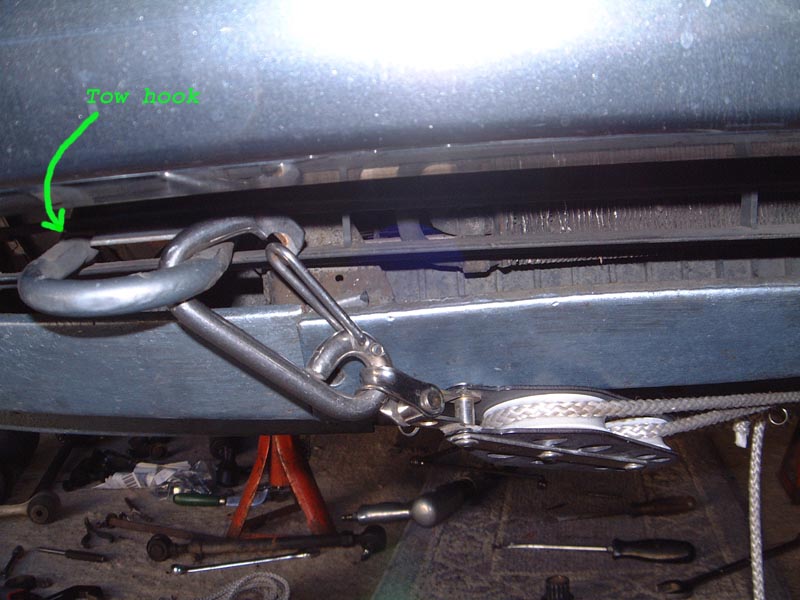

Vang attached to front tow hook

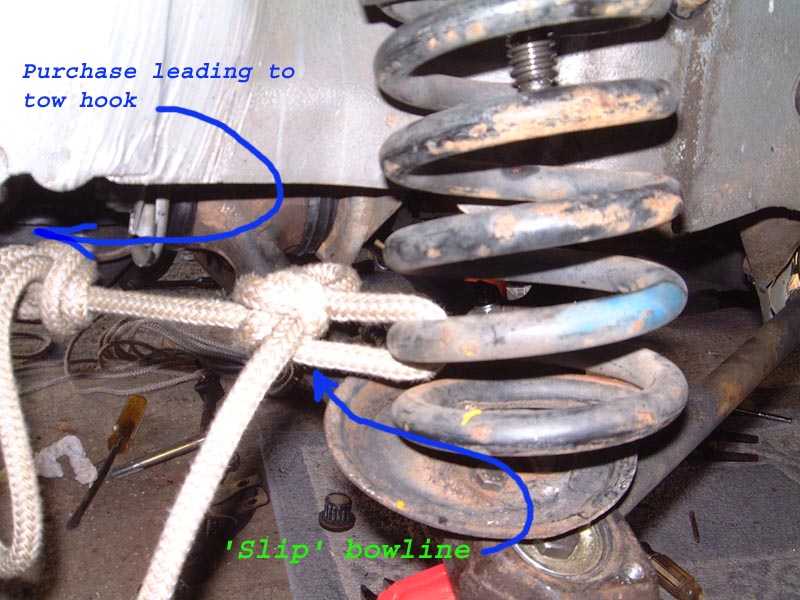

Other end of vang pulling spring into place over spring seat.
